API Import

Import OpenAPI/Swagger specifications and Postman collections into your workspace

The API Workspace enables you to import API specifications to manage, test, and configure them within FlowGenX. Whether you have an OpenAPI spec, a Postman collection, or want to define an API manually, the API Import feature brings your external services into the platform.

Centralized API Management

Import, configure, and test your APIs in one unified workspace

Supported Formats

FlowGenX supports importing from multiple specification formats:

OpenAPI 3.0+

JSON or YAML format

Swagger 2.0

Legacy API specs

Postman

Collection v2.1 exports

Import Workflow

Importing an API involves creating a resource, defining the specification, and configuring the environment:

Import Process

Create API → Import Spec → Configure & Test

Create Resource

Paste Spec

Test API

Step-by-Step Guide

Step 1: Create New API Resource

Navigate to API Import

Go to Integration Studio → API Import.

Click the "New API" button.

Enter a descriptive name for your API (e.g., "Stripe API", "Internal CRM") and click Create.

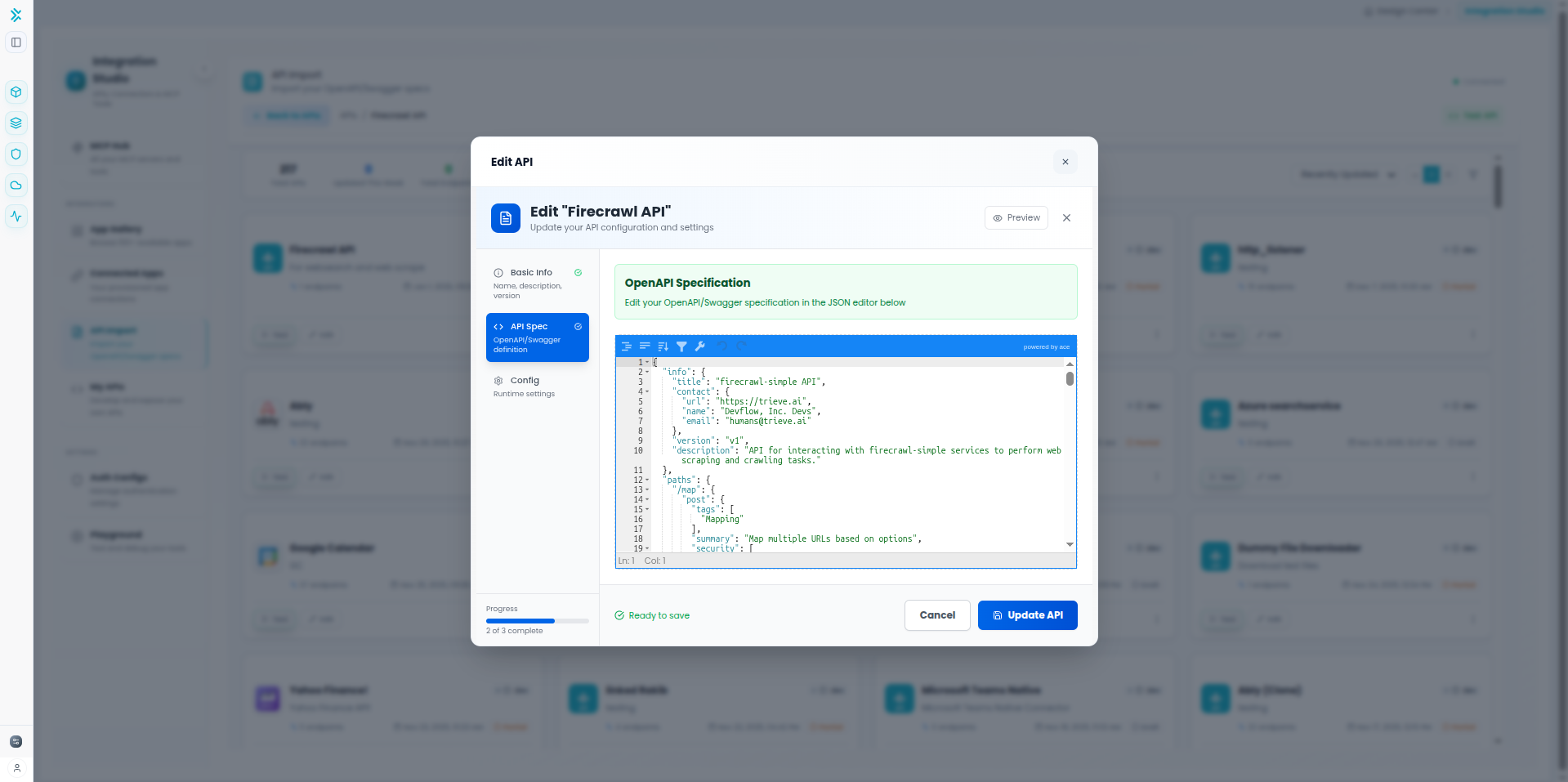

Step 2: Import Specification

Open Editor and Paste Spec

Click on your newly created API card to open the details view, then click Edit.

Importing Options:

JSON/YAML: Paste your OpenAPI or Swagger definition directly into the editor.
Validation: The editor will automatically validate the syntax of your specification.

Step 3: Parse and Update

Update API Definition

Click Update API to save your changes. The system will:

Parse the specification structure
Identify all available endpoints (GET, POST, etc.)
Extract parameter definitions and schemas
Prepare the API for testing and configuration

✓ Endpoints Detected

Your API endpoints are now cataloged and ready to be configured or tested within the workspace.

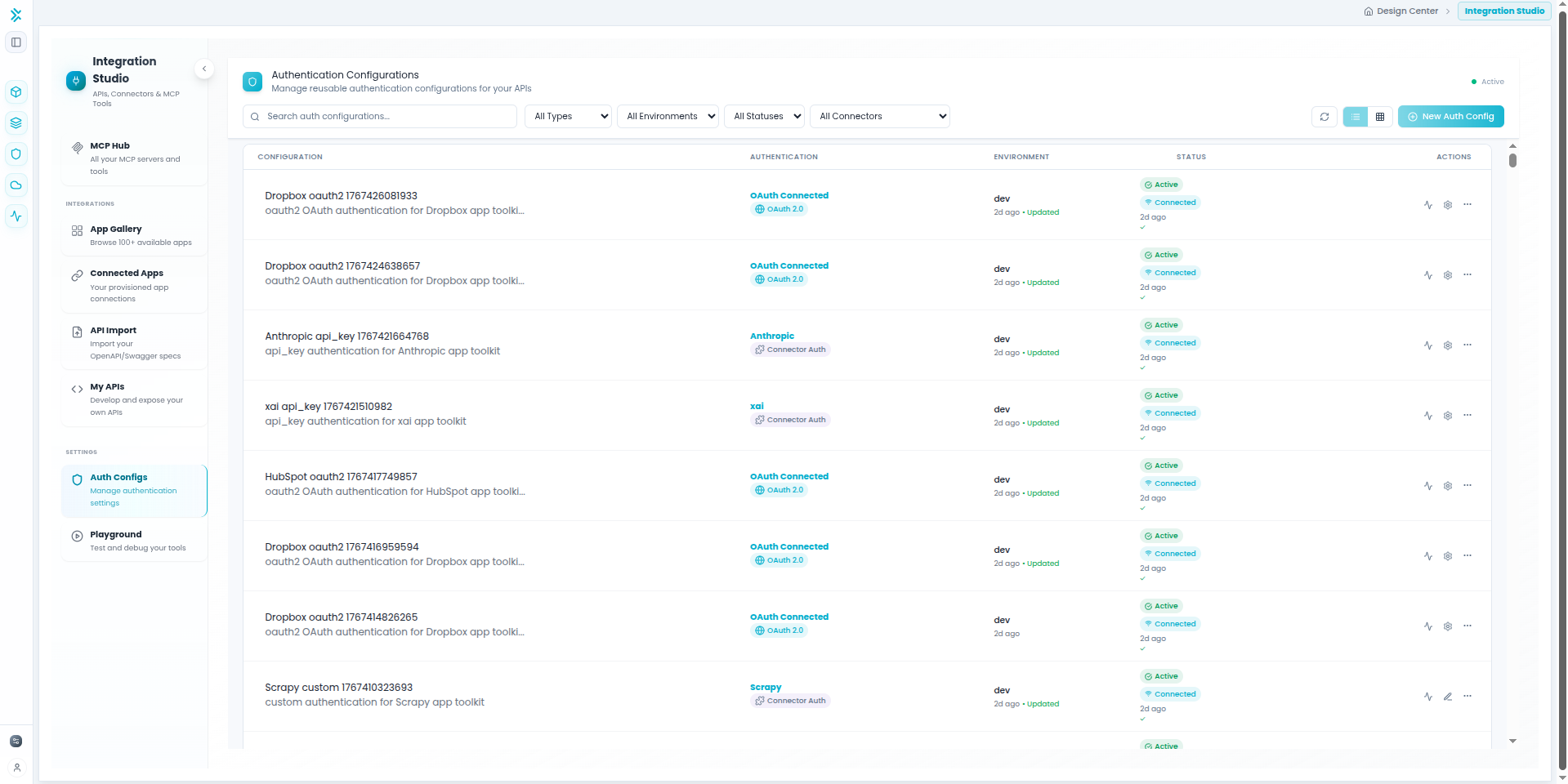

Step 4: Configure Authentication

Set Up Credentials

Most APIs require authentication. Configure this in the Auth Configs section.

API Key

Headers (e.g., x-api-key) or query params

Bearer Token

Authorization: Bearer <token>

OAuth 2.0

Client Credentials, Authorization Code flows

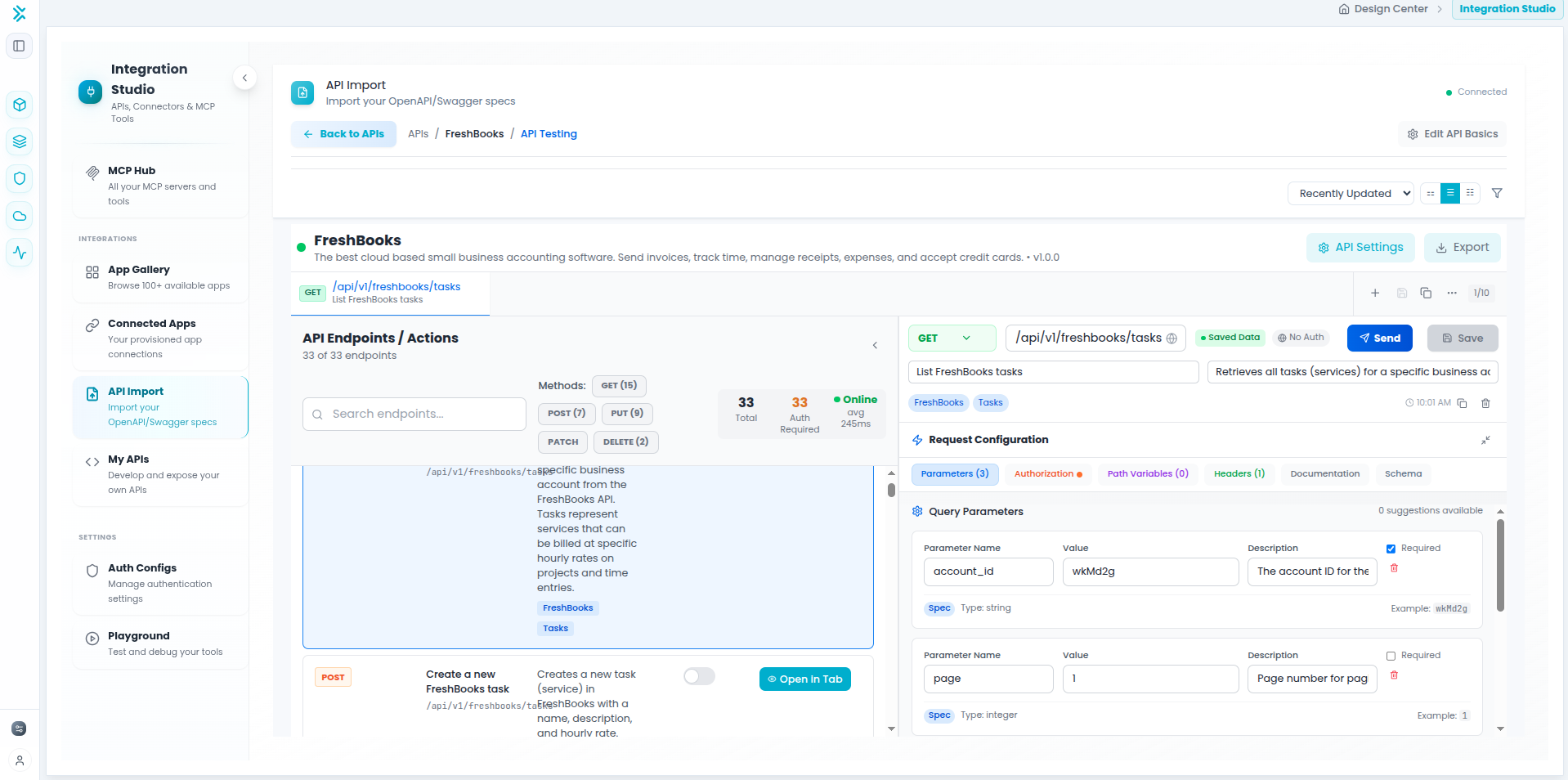

Step 5: Test API Endpoints

Test in API Workspace

Verify your API configuration using the API Workspace's built-in testing interface (similar to Postman).

Testing Features:

Select an endpoint from the list
Enter test parameters and body data
Send the request and view the live response
Inspect headers, status codes, and response times

Best Practices

Import Tips

Validate Specs: Ensure your OpenAPI/Swagger specs are valid before importing to avoid parsing errors.
Secure Credentials: Never paste hardcoded API keys in the spec itself. Use the Auth Configs feature.
Keep Updated: If your API changes, you can re-import the spec to update the definitions in FlowGenX.
Environment Variables: Use variables for base URLs to easily switch between Staging and Production environments.
