Loop Node

The Loop node enables powerful iterative processing in workflows, supporting multiple loop types (for, while, foreach, do-while) with intelligent break/skip conditions and automatic result aggregation. Whether processing collections, implementing retry logic, or handling complex iterative algorithms, this node provides enterprise-grade loop control.

Overview

The Loop node is your workflow's iteration engine, capable of handling all common loop patterns with intelligent control flow and automatic result aggregation. From processing collections to implementing retry logic, it provides the flexibility and reliability needed for complex iterative workflows.

Key Capabilities

Use Cases

• Collection Processing: Iterate over arrays of data with automatic item extraction
• Retry Logic: Implement exponential backoff and retry mechanisms
• Batch Processing: Process large datasets in configurable chunks
• Conditional Iteration: Continue looping while conditions are met
• API Pagination: Handle paginated API responses with automatic iteration
• Data Transformation: Apply operations to each item in a collection
• Workflow Orchestration: Coordinate complex multi-step iterative processes

Configuration Guide

The Loop node doesn't require explicit type selection. Instead, its behavior emerges from how you configure it. By combining different settings (foreach mode, break conditions, max iterations), the loop naturally behaves like different loop patterns.

1. Loop Behavior Patterns

The Loop node can exhibit four different loop behaviors based on configuration:

Note: These are behavioral patterns, not separate node types. The same Loop node can exhibit any of these behaviors depending on how you configure it.

2. Loop Control Parameters

Configure iteration behavior and limits.

Loop Parameters configuration showing iteration controls

Iteration Controls

Starting Index:

• Purpose: Where to begin iteration (for collections)
• Type: Integer (default: 0)
• Use: Skip initial items in a collection
• Example: Start processing from the 5th item in an array

Max Iterations:

• Purpose: Safety limit to prevent infinite loops
• Type: Integer (default: 0 = unlimited)
• Use: Always set when using break conditions, or set to fixed value for counter-based iteration
• Example: Allow maximum 100 retry attempts

Current Index:

• Purpose: Tracks current iteration position
• Type: Integer (managed automatically)
• Use: Usually managed by the system, can be set for testing
• Example: Manually set to test specific iteration behavior

Loop Mode Toggle

Foreach Mode:

• Purpose: Enable collection iteration
• Type: Boolean (default: false)
• Behavior: Automatically extracts individual items from arrays
• Example: When enabled, array [A,B,C] becomes individual items A, B, C

3. Break and Skip Conditions

Define when to exit or skip iterations using JEXL expressions.

Break and Skip Conditions using JEXL expressions

Break Condition

Purpose: Defines when to exit the loop completely

Examples:

// Status-based breaking
status == "completed"

// Counter-based breaking
attempts >= max_attempts

// Error condition breaking
error_count > 3

// Complex condition breaking
user.active == false || account.suspended == true

Skip Condition

Purpose: Defines when to skip the current iteration and continue to the next

Examples:

// Skip invalid items
item.status == "invalid"

// Skip already processed
processed_items | contains(item.id)

// Skip based on type
item.type == "deprecated"

Important Notes:

• Break conditions cause immediate loop termination
• Skip conditions skip current iteration but continue looping
• Both use JEXL expression syntax
• Empty conditions (blank) are ignored

4. Output Configuration

Define how aggregated results should be formatted. The Loop node automatically aggregates results from all iterations and converts them to your specified output type.

Output Types

Number:

• Extracts numeric values from iteration results
• Returns single number or array of numbers
• Useful for counters, sums, averages

String:

• Converts results to string representation
• Returns concatenated or formatted string
• Useful for logging, summaries

Array:

• Returns results as array (default behavior)
• Preserves iteration order
• Useful for maintaining collection structure

Object:

• Returns results wrapped in an object
• Format: {"accumulated_results": [...]}
• Useful for structured API responses

Routing Behavior

The Loop node provides two routing paths that control workflow flow.

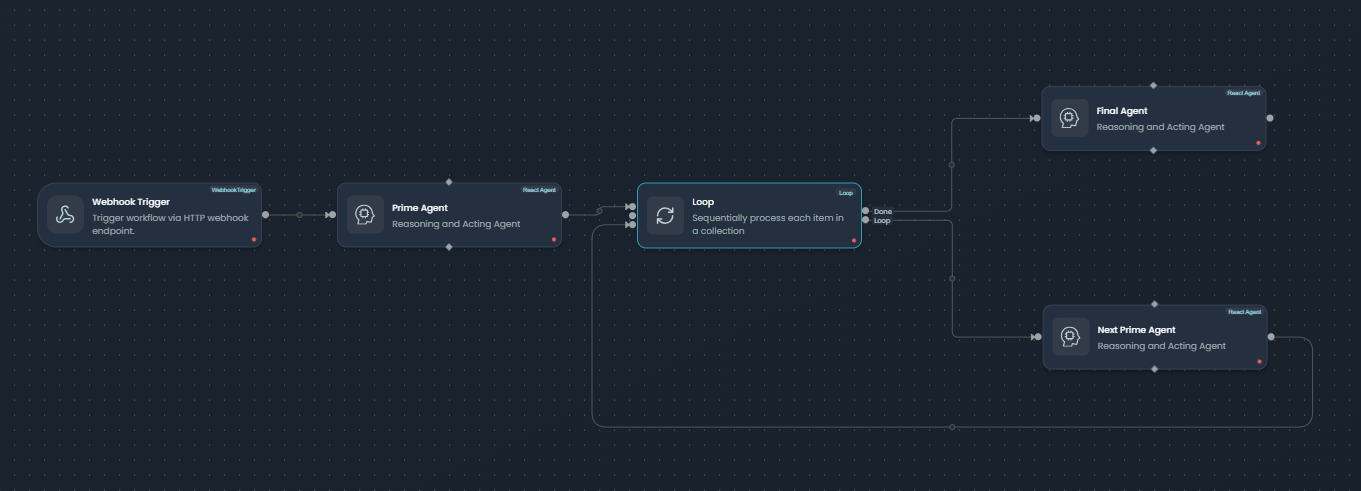

Workflow routing showing loop continuation and completion paths

Loop Path (Continue)

Triggers:

• Current iteration completes successfully
• Skip condition is met (skips to next iteration)
• Max iterations not yet reached
• Break condition not met

Actions:

• Increments current_index
• Accumulates current iteration result
• Returns to loop start for next iteration
• Passes current item to processing nodes

Done Path (Break)

Triggers:

• Break condition evaluates to true
• Max iterations reached
• Collection iteration completes
• Foreach loop finishes all items

Actions:

• Aggregates all accumulated results
• Converts output to specified type
• Routes to completion/summary nodes
• Provides final aggregated output

Expression Reference

JEXL Expression Syntax

The Loop node uses JEXL (JavaScript Expression Language) for break and skip conditions with access to the current iteration data.

// Direct field access
status == "active"
count > 10

// Nested object access
user.profile.verified == true
order.items[0].price > 100

// Array operations
tags | contains("urgent")
errors | length > 0

// Logical combinations
status == "pending" && priority == "high"
count >= max_count || timeout == true

// Type checking
value != null
typeof(amount) == "number"

Available Context

When writing expressions, you have access to:

// Current iteration data (direct access)
status, count, user, order, etc.

// Special variables
current_index    // Current iteration number (0-based)
starting_index   // Configured starting index
max_iterations   // Maximum allowed iterations
item             // Current item in foreach mode

// Collection metadata (foreach mode)
total_items      // Total items in collection
is_first         // Boolean: first iteration
is_last          // Boolean: last iteration
progress_percentage // Completion percentage

Transform Examples

Complete Configuration Examples

Example 1: Collection Iteration Pattern (Foreach-like)

Process each user in a collection with error handling and result aggregation. Configured by enabling foreach mode.

{
  "node_type": "loop",
  "node_id": "process_users_001",
  "config": {
    "foreach": true,
    "starting_index": 0,
    "max_iterations": 0,
    "break_condition": "error_count >= 5",
    "skip_condition": "user.status == 'inactive'",
    "output": {
      "type": "array",
      "properties": {
        "processed_users": {
          "type": "array",
          "description": "List of successfully processed users"
        }
      }
    }
  }
}

Configuration Notes:

• foreach: true enables collection iteration behavior
• max_iterations: 0 means no limit (processes all items)
• break_condition provides safety exit
• skip_condition filters out inactive users

Workflow Behavior:

1. Receives array of users as input
2. Iterates through each user individually
3. Skips inactive users
4. Breaks if error_count reaches 5
5. Aggregates results from successful processing
6. Outputs array of processed user data

Example 2: Condition-Based Pattern (While-like)

Retry API call until success or max attempts reached. Configured with break condition and max iterations.

{
  "node_type": "loop",
  "node_id": "api_retry_001",
  "config": {
    "foreach": false,
    "starting_index": 0,
    "max_iterations": 5,
    "break_condition": "api_response.success == true || attempts >= max_attempts",
    "skip_condition": "",
    "output": {
      "type": "object",
      "properties": {
        "final_result": {
          "type": "object",
          "description": "Final API response or error details"
        }
      }
    }
  }
}

Configuration Notes:

• foreach: false means single-item iteration
• max_iterations: 5 sets safety limit
• break_condition defines exit criteria
• No skip condition needed

Workflow Behavior:

1. Makes API call in each iteration
2. Checks if response is successful
3. Continues until success or 5 attempts reached
4. Aggregates attempt history
5. Outputs final successful response or last error

Example 3: Counter-Based Pattern (For-like)

Process data in fixed-size batches with progress tracking. Configured with fixed max iterations.

{
  "node_type": "loop",
  "node_id": "batch_processor_001",
  "config": {
    "foreach": true,
    "starting_index": 0,
    "max_iterations": 10,
    "break_condition": "",
    "skip_condition": "batch | length == 0",
    "output": {
      "type": "array",
      "properties": {
        "processed_batches": {
          "type": "array",
          "description": "Results from each processed batch"
        }
      }
    }
  }
}

Configuration Notes:

• foreach: true enables batch iteration
• max_iterations: 10 fixes iteration count
• No break condition (relies on max_iterations)
• Skip condition filters empty batches

Workflow Behavior:

1. Processes exactly 10 batches
2. Each iteration receives a batch of items
3. Skips empty batches
4. Aggregates batch processing results
5. Outputs complete batch processing summary

Example 4: Execute-Then-Check Pattern (Do-While-like)

Validate and clean data, ensuring at least one validation pass. Configured with break condition that executes after first iteration.

{
  "node_type": "loop",
  "node_id": "data_validator_001",
  "config": {
    "foreach": false,
    "starting_index": 0,
    "max_iterations": 3,
    "break_condition": "validation_errors | length == 0",
    "skip_condition": "",
    "output": {
      "type": "object",
      "properties": {
        "validated_data": {
          "type": "object",
          "description": "Clean validated data"
        },
        "validation_history": {
          "type": "array",
          "description": "History of validation attempts"
        }
      }
    }
  }
}

Configuration Notes:

• foreach: false for single-item processing
• break_condition checked after each iteration
• max_iterations: 3 provides safety limit
• First iteration always executes before checking break condition

Workflow Behavior:

1. Always executes at least one validation pass
2. Continues validating until no errors remain
3. Limited to maximum 3 validation attempts
4. Aggregates validation history and fixes applied
5. Outputs clean data and validation summary

Integration with LangGraph Workflows

The Loop node integrates seamlessly with LangGraph's conditional edges system, creating iterative cycles in your workflow.

Workflow Cycle Structure

The Loop node creates a cycle in your workflow with conditional branching between loop continuation and completion:

State Management

The Loop node manages state throughout iterations, tracking progress and accumulating results:

Best Practices

1. Configuration Strategy

2. Condition Writing

Break Conditions:

• Keep simple and focused on exit criteria
• Use clear, boolean-returning expressions
• Include safety limits (max_iterations)

Skip Conditions:

• Use for filtering out invalid items
• Don't overuse - consider pre-filtering data
• Combine with break conditions for complex logic

3. Performance Considerations

4. Error Handling

Common Patterns:

• Use break conditions for error thresholds
• Include error counters in your data
• Set reasonable max_iterations as safety nets
• Log iteration details for debugging

Recovery Strategies:

• Implement exponential backoff in retry loops
• Use skip conditions for graceful error handling
• Aggregate error information for reporting
• Provide fallback outputs when loops fail

5. Testing and Validation

Test Scenarios:

• Empty collections (should break immediately)
• Single item collections
• Break conditions trigger correctly
• Skip conditions work as expected
• Max iterations are respected
• Output aggregation works for all types
• Error conditions are handled gracefully

Debug Checklist:

• Verify foreach mode detects collections correctly
• Test JEXL expressions with sample data
• Check that current_index increments properly
• Validate accumulated_results structure
• Confirm routing paths work as expected

Troubleshooting

Common Issues

Debug Information

The loop node provides detailed debug information:

// Loop info structure
{
  "current_index": 2,
  "starting_index": 0,
  "max_iterations": 10,
  "total_items": 5,
  "items_processed": 3,
  "is_collection": true,
  "progress_percentage": 60.0,
  "has_break_condition": true,
  "has_skip_condition": false,
  "items_remaining": 2,
  "is_first": false,
  "is_last": false
}

Debug Commands:

• Check accumulated_results for iteration history
• Monitor current_index progression
• Validate JEXL expression evaluation
• Inspect routing decisions

Next Steps

Summary

The Loop node is your workflow's iteration powerhouse, providing universal loop support with intelligent control and automatic result aggregation:

• Flexible Configuration: Single node that behaves like different loop patterns (For, While, Foreach, Do-While) based on configuration
• JEXL Conditions: Powerful break and skip logic with 40+ transforms
• Smart Aggregation: Automatic result accumulation with type-aware output conversion
• Dual Routing: Clean loop/done branching for flexible workflow control
• Enterprise Features: Safety limits, progress tracking, and comprehensive error handling
• LangGraph Integration: Seamless integration with conditional workflow edges

Whether processing collections, implementing retry logic, or handling complex iterative algorithms, the Loop node provides the reliability and flexibility needed for production workflows. The loop behavior emerges naturally from how you configure it—no explicit type selection required.

This documentation covers the Loop node functionality as implemented in the FlowGenX workflow engine. For technical implementation details, refer to the loop router component in the runtime agents.
